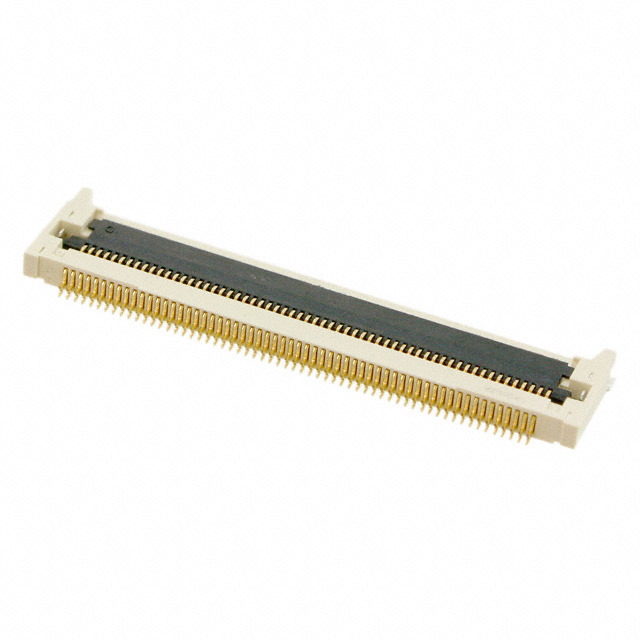

FF0360SA1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FF0360SA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FF0360SA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FF0360SA1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 60POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.841 | $2.721 | $2.485 | $2.366 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.248 | $2.011 | $1.893 | $1.656 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FF0360SA1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 60POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21683 pcs | Data sheet | FF03 Series DatasheetFF03xxSA1 DrawingBoard-to-Flex Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FF03 |
| Pitch | 0.020" (0.50mm) | Packaging | Strip |
| Other Names | 670-2084 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 60 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Rotary Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | White |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 60 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
