FF02S55SV1

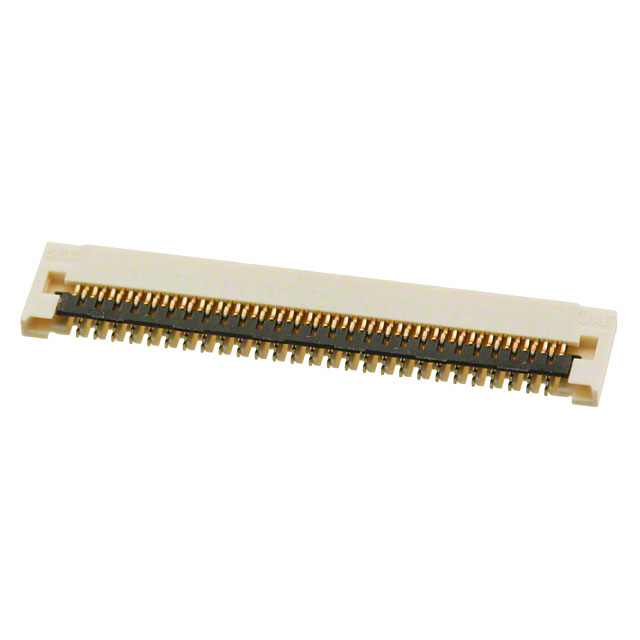

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FF02S55SV1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FF02S55SV1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FF02S55SV1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN FPC BOTTOM 55POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 57 pcs | ||||
|---|---|---|---|---|---|
| $3.011 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FF02S55SV1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 55POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11028 pcs | Data sheet | FF02SyySV1 DrawingBoard-to-Flex Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FF02S |
| Pitch | 0.012" (0.30mm) | Packaging | Tray |
| Other Names | 670-1833 FF02S55SV1-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 55 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | White |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.12mm |
| Detailed Description | 55 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.35A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Black |
