Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ZL2105EVK2

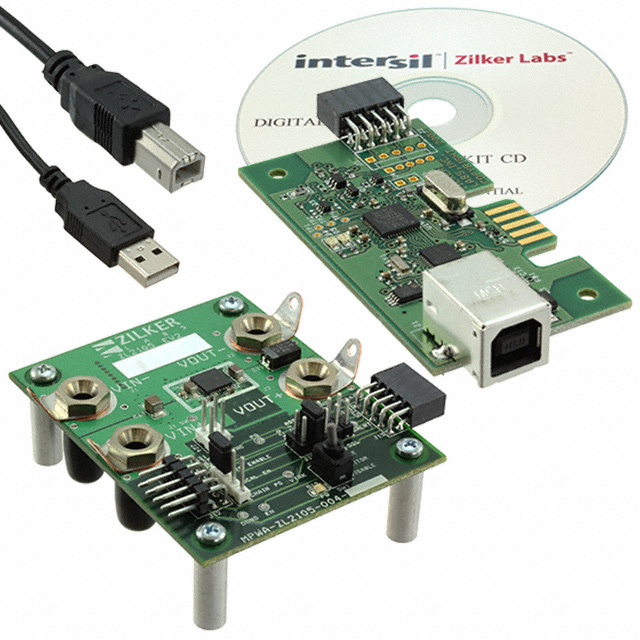

ZL2105EVK2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZL2105EVK2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZL2105EVK2
Manufacturer	Intersil
Description	EVAL BOARD 2 ZL2105
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 522 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$65.921

Product parameter
Data sheet

Product parameter

Part Number	ZL2105EVK2	Manufacturer	Intersil
Description	EVAL BOARD 2 ZL2105	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	522 pcs	Data sheet	ZL2105EVK2 Eval Board/Kit ZL2105
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	4.5 V ~ 14 V	Utilized IC / Part	ZL2105
Supplied Contents	Board(s)	Series	Zilker Labs™
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	400kHz	Detailed Description	ZL2105 Zilker Labs™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	3A	Board Type	Fully Populated
