Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ZL2102DEMO1Z

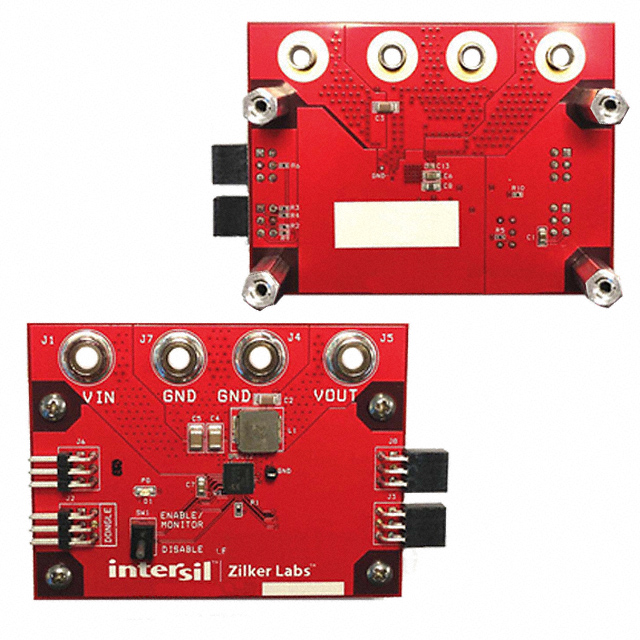

ZL2102DEMO1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZL2102DEMO1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZL2102DEMO1Z
Manufacturer	Intersil
Description	BOARD DEMO 1 ZL2102
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1145 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$28.272

Product parameter
Data sheet

Product parameter

Part Number	ZL2102DEMO1Z	Manufacturer	Intersil
Description	BOARD DEMO 1 ZL2102	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1145 pcs	Data sheet	ZL2102DEMO1Z Demo Brd Datasheet ZL2102
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	7.5 V ~ 14 V	Utilized IC / Part	ZL2102
Supplied Contents	Board(s), Cable(s)	Series	Zilker Labs™
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	19 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	600kHz	Detailed Description	ZL2102 Zilker Labs™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	6A	Board Type	Fully Populated
