ISL9502CRZ-T

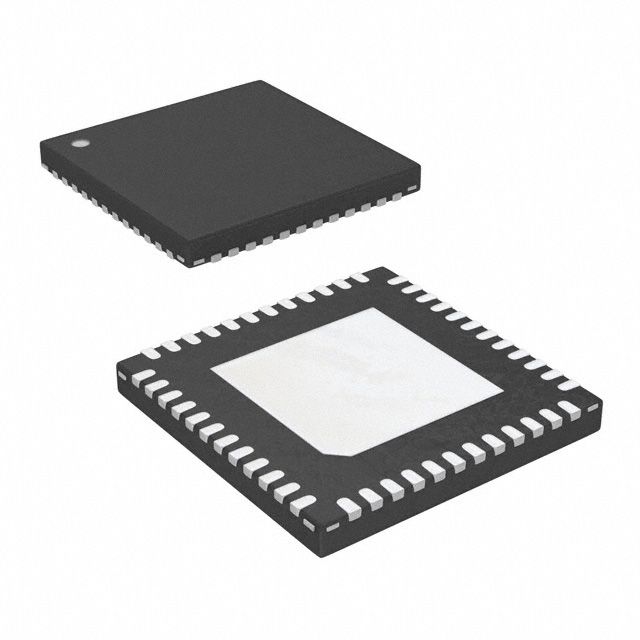

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL9502CRZ-T with confidence from Components-World.HK, 1 Year Warranty
Dowload ISL9502CRZ-T Details in PDFSee Product Specifications for product details.
Buy ISL9502CRZ-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL9502CRZ-T |
|---|---|
| Manufacturer | Intersil |
| Description | IC REG CTRLR BUCK 48QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL9502CRZ-T | Manufacturer | Intersil |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 48QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5073 pcs | Data sheet | ISL9502 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4.75 V ~ 5.25 V |
| Topology | Buck | Synchronous Rectifier | Yes |
| Supplier Device Package | 48-QFN (7x7) | Series | Robust Ripple Regulator™ (R3) |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Other Names | ISL9502CRZ-T-ND ISL9502CRZ-TTR |
Operating Temperature | -10°C ~ 100°C (TA) |
| Number of Outputs | 2 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Down |
| Frequency - Switching | 200kHz ~ 500kHz | Duty Cycle (Max) | - |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 48-QFN (7x7) | Control Features | Current Limit, Power Good |
| Clock Sync | No | Base Part Number | ISL9502 |
