ISL9500CVZ-T

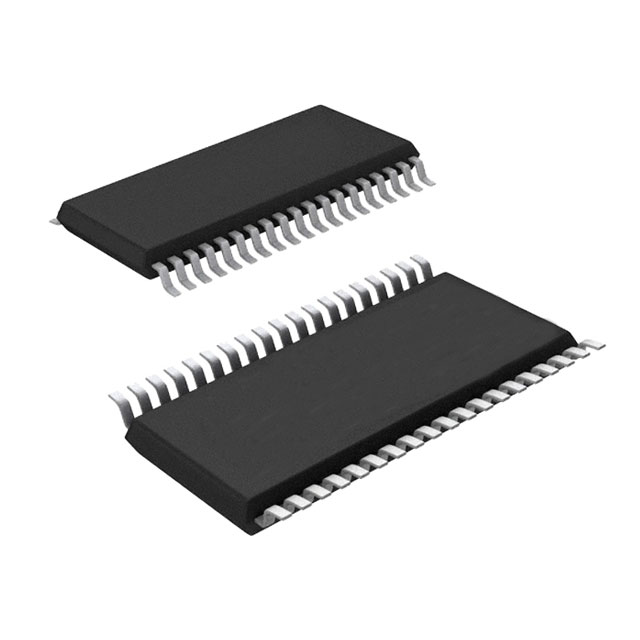

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL9500CVZ-T with confidence from Components-World.HK, 1 Year Warranty
Dowload ISL9500CVZ-T Details in PDFSee Product Specifications for product details.
Buy ISL9500CVZ-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ISL9500CVZ-T |
|---|---|
| Manufacturer | Intersil |
| Description | IC REG CTRLR BUCK 38TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.825 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ISL9500CVZ-T | Manufacturer | Intersil |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 38TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43108 pcs | Data sheet | ISL9500 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4.75 V ~ 5.25 V |
| Topology | Buck | Synchronous Rectifier | Yes |
| Supplier Device Package | 38-TSSOP | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Other Names | ISL9500CVZ-T-ND ISL9500CVZ-TTR |
Operating Temperature | -10°C ~ 85°C (TA) |
| Number of Outputs | 2 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 250kHz ~ 1MHz |
| Duty Cycle (Max) | - | Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 38-TSSOP |
| Control Features | Enable, Frequency Control, Phase Control, Power Good | Clock Sync | No |
| Base Part Number | ISL9500 |
