Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8205MEVAL1Z

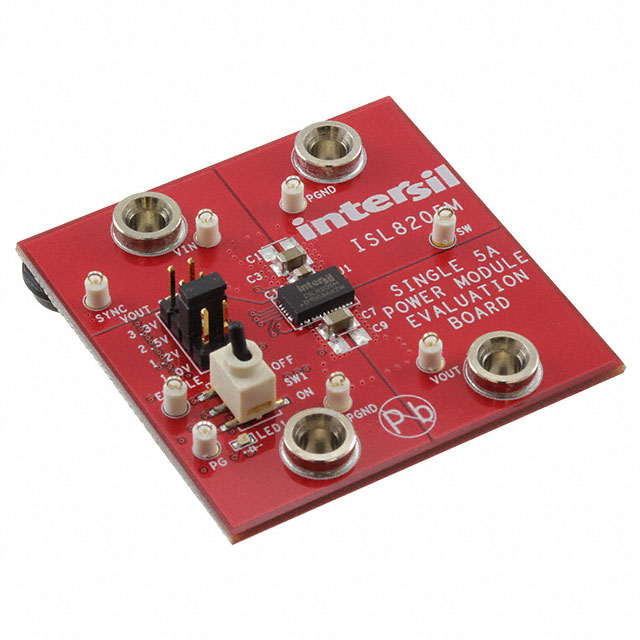

ISL8205MEVAL1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8205MEVAL1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8205MEVAL1Z
Manufacturer	Intersil
Description	ISL8205 EVAL BOARD
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1184 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$27.427

Product parameter
Data sheet

Product parameter

Part Number	ISL8205MEVAL1Z	Manufacturer	Intersil
Description	ISL8205 EVAL BOARD	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1184 pcs	Data sheet	ISL8205M Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	1.2V
Voltage - Input	2.6 V ~ 5.5 V	Utilized IC / Part	ISL8205M
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	1.6MHz	Detailed Description	ISL8205M - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	5A	Board Type	Fully Populated
