Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL8203MEVAL2Z

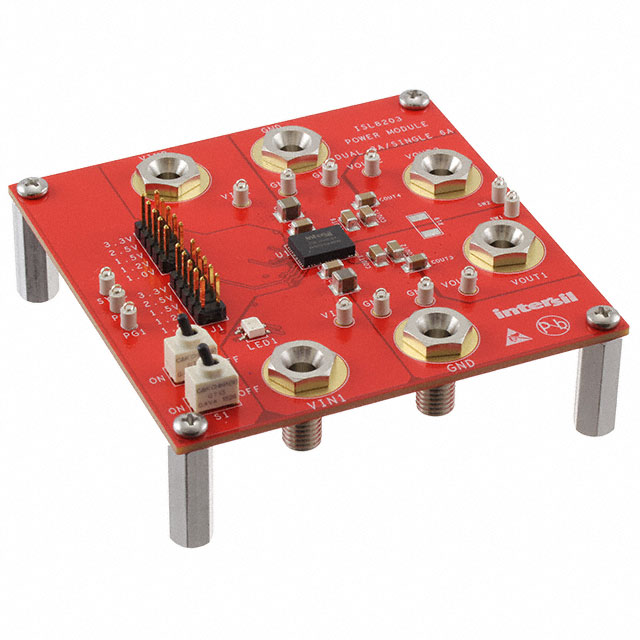

ISL8203MEVAL2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL8203MEVAL2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL8203MEVAL2Z
Manufacturer	Intersil
Description	ISL8203M EVAL BRD
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 1305 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$26.923

Product parameter
Data sheet

Product parameter

Part Number	ISL8203MEVAL2Z	Manufacturer	Intersil
Description	ISL8203M EVAL BRD	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	1305 pcs	Data sheet	ISL8203M Datasheet ISL8203MEVAL2Z User Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	1V, 1.2V, 1.5V, 2.5V or 3.3V
Voltage - Input	2.85 V ~ 6 V	Utilized IC / Part	ISL8203M
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	1MHz	Detailed Description	ISL8203M - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Current - Output	3A, 3A	Board Type	Fully Populated
