Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ISL78229EV1Z

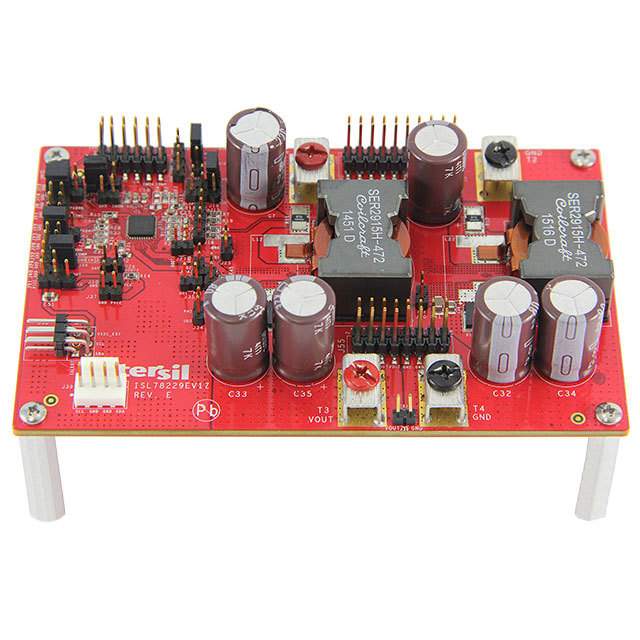

ISL78229EV1Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ISL78229EV1Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ISL78229EV1Z
Manufacturer	Intersil
Description	EVAL BRD 2PH BST CONTR W/PMBUS
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 447 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$68.869

Product parameter
Data sheet

Product parameter

Part Number	ISL78229EV1Z	Manufacturer	Intersil
Description	EVAL BRD 2PH BST CONTR W/PMBUS	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	447 pcs	Data sheet	ISL78229 Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	-	Utilized IC / Part	ISL78229
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	-	Detailed Description	ISL78229 DC/DC, Step Up Evaluation Board
Current - Output	-	Board Type	Fully Populated
