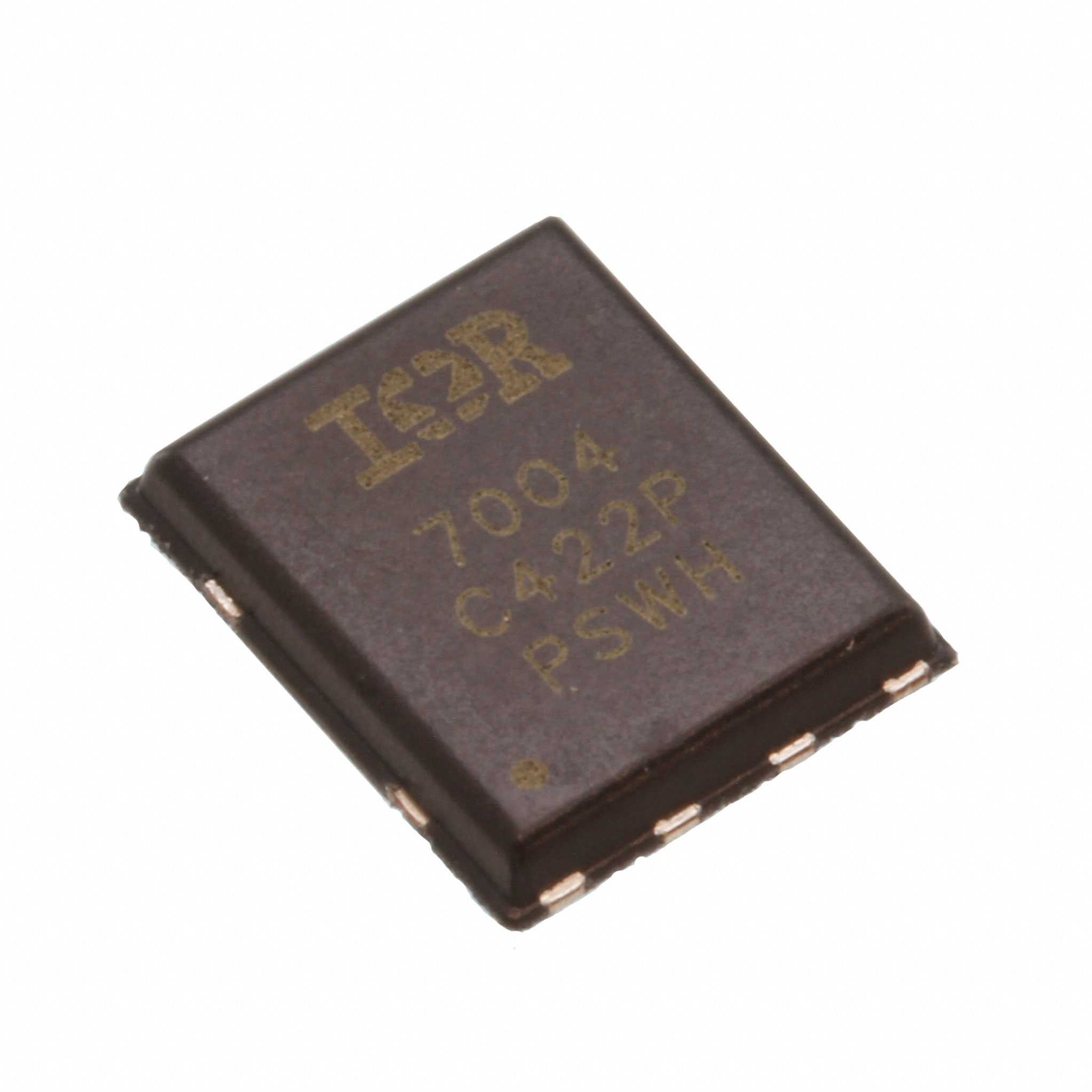

IRFH7004TRPBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IRFH7004TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IRFH7004TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IRFH7004TRPBF |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET N CH 40V 100A PQFN 5X6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.729 | $0.659 | $0.53 | $0.412 | $0.341 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IRFH7004TRPBF | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N CH 40V 100A PQFN 5X6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68400 pcs | Data sheet | IRFH7004PbF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.9V @ 150µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PQFN (5x6) | Series | HEXFET®, StrongIRFET™ |
| Rds On (Max) @ Id, Vgs | 1.4 mOhm @ 100A, 10V | Power Dissipation (Max) | 156W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-VQFN Exposed Pad |
| Other Names | IRFH7004TRPBFCT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 6419pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 194nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 100A (Tc) 156W (Tc) Surface Mount 8-PQFN (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
