IKZ75N65EH5XKSA1

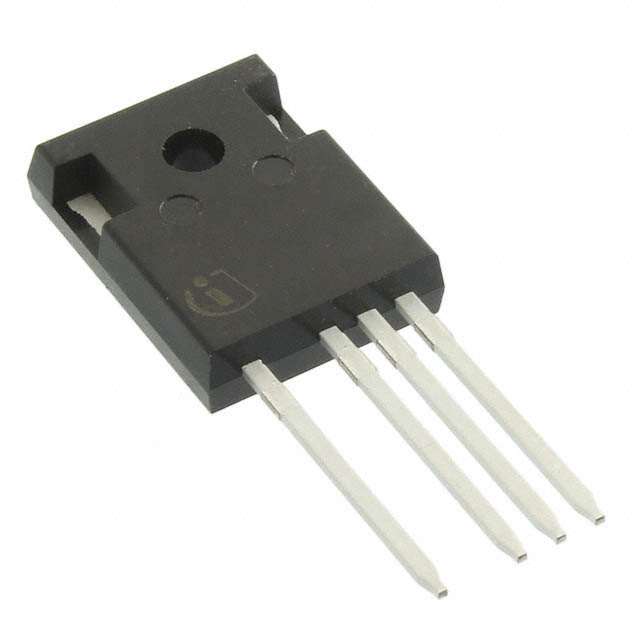

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IKZ75N65EH5XKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IKZ75N65EH5XKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IKZ75N65EH5XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 650V 90A W/DIO TO247-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 240 pcs | ||||
|---|---|---|---|---|---|
| $2.47 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IKZ75N65EH5XKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IGBT 650V 90A W/DIO TO247-4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13632 pcs | Data sheet | IKZ75N65EH5 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | Test Condition | 400V, 37.5A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 26ns/347ns | Switching Energy | 680µJ (on), 430µJ (off) |
| Supplier Device Package | PG-TO247-4 | Series | TrenchStop™ 5 |
| Reverse Recovery Time (trr) | 58ns | Power - Max | 395W |
| Packaging | Tube | Package / Case | TO-247-4 |
| Other Names | IKZ75N65EH5XKSA1-5 SP001160046 |
Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | - | Gate Charge | 166nC |
| Detailed Description | IGBT 650V 90A 395W Through Hole PG-TO247-4 | Current - Collector Pulsed (Icm) | 300A |
| Current - Collector (Ic) (Max) | 90A |
