FGH75T65SHDTL4

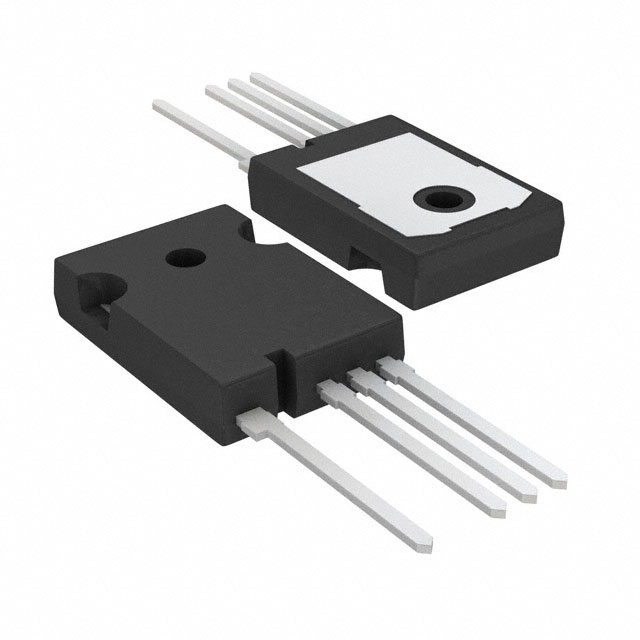

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FGH75T65SHDTL4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FGH75T65SHDTL4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FGH75T65SHDTL4 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 650V 150A 455W TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 450 pcs | 900 pcs | |
|---|---|---|---|---|---|
| $3.016 | $2.725 | $2.154 | $1.964 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FGH75T65SHDTL4 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IGBT 650V 150A 455W TO-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19842 pcs | Data sheet | FGH75T65SHDTL4 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | Test Condition | 400V, 75A, 15 Ohm, 15V |
| Td (on/off) @ 25°C | 55ns/189ns | Switching Energy | 1.06mJ (on), 1.56mJ (off) |
| Supplier Device Package | TO-247 | Series | - |
| Reverse Recovery Time (trr) | 76ns | Power - Max | 455W |
| Packaging | Tube | Package / Case | TO-247-4 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | Field Stop |
| Gate Charge | 126nC | Detailed Description | IGBT Field Stop 650V 150A 455W Through Hole TO-247 |
| Current - Collector Pulsed (Icm) | 300A | Current - Collector (Ic) (Max) | 150A |
