IKY40N120CS6XKSA1

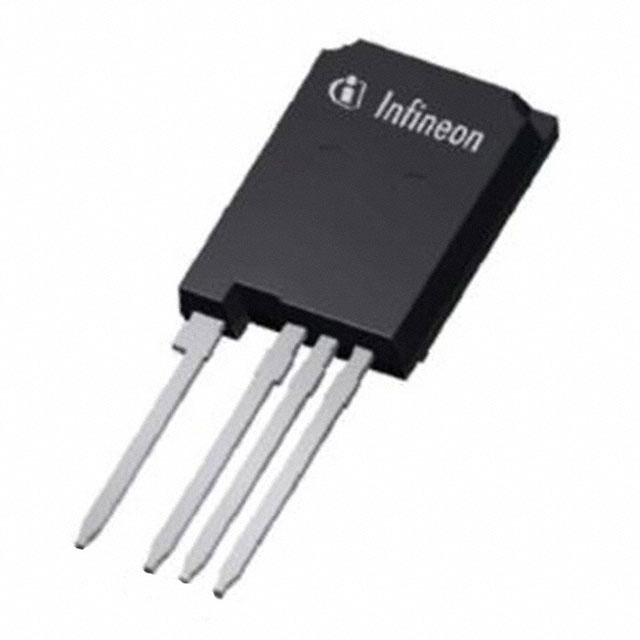

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IKY40N120CS6XKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IKY40N120CS6XKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IKY40N120CS6XKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 1200V 40A TO247PLUS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | ||
|---|---|---|---|---|---|
| $4.422 | $3.996 | $3.308 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IKY40N120CS6XKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IGBT 1200V 40A TO247PLUS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10498 pcs | Data sheet | IKY40N120CS6 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A | Test Condition | 600V, 40A, 9 Ohm, 15V |
| Td (on/off) @ 25°C | 27ns/315ns | Switching Energy | 1.45mJ (on), 1.55mJ (off) |
| Supplier Device Package | PG-TO247-4-2 | Series | TrenchStop™ |
| Reverse Recovery Time (trr) | 255ns | Power - Max | 500W |
| Packaging | Tube | Package / Case | TO-247-4 |
| Other Names | SP001666620 | Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | Trench Field Stop | Gate Charge | 285nC |
| Detailed Description | IGBT Trench Field Stop 1200V 80A 500W Through Hole PG-TO247-4-2 | Current - Collector Pulsed (Icm) | 160A |
| Current - Collector (Ic) (Max) | 80A |
