IKFW50N60DH3EXKSA1

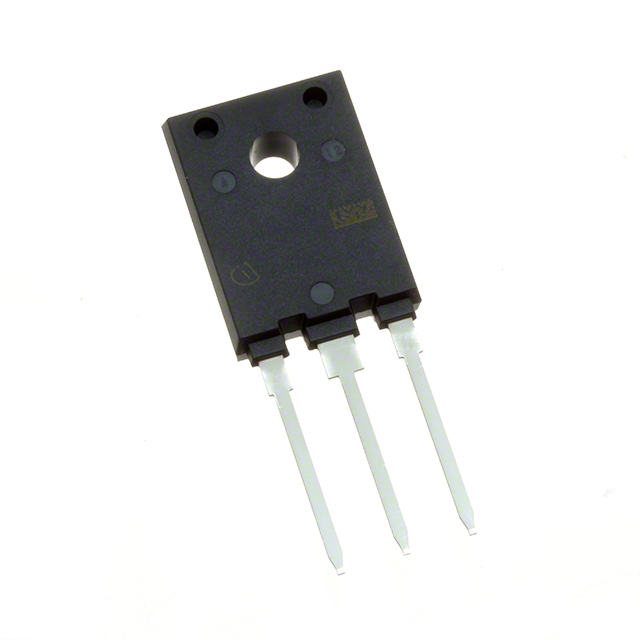

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IKFW50N60DH3EXKSA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IKFW50N60DH3EXKSA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IKFW50N60DH3EXKSA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IGBT 600V 40A TO247-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 240 pcs | 720 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $2.448 | $2.211 | $1.831 | $1.594 | $1.389 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IKFW50N60DH3EXKSA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IGBT 600V 40A TO247-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22232 pcs | Data sheet | IKFW50N60DH3E |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 40A | Test Condition | 400V, 40A, 8 Ohm, 15V |
| Td (on/off) @ 25°C | 21ns/174ns | Switching Energy | 1.28mJ (on), 560µJ (off) |
| Supplier Device Package | PG-TO247-3-AI | Series | TrenchStop™ |
| Reverse Recovery Time (trr) | 64ns | Power - Max | 130W |
| Package / Case | TO-247-3 | Other Names | SP001502656 |
| Operating Temperature | -40°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 52 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | Trench Field Stop | Gate Charge | 160nC |
| Detailed Description | IGBT Trench Field Stop 600V 40A 130W Through Hole PG-TO247-3-AI | Current - Collector Pulsed (Icm) | 120A |
| Current - Collector (Ic) (Max) | 40A |
