BTS56033LBAAUMA1

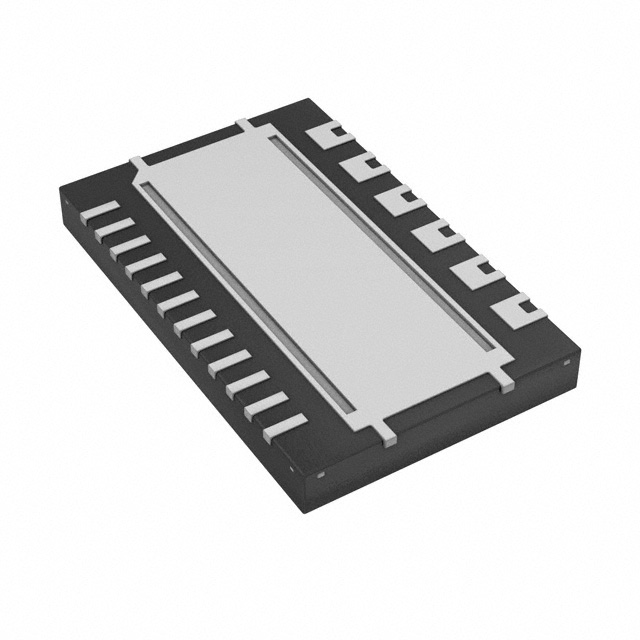

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTS56033LBAAUMA1 with confidence from Components-World.HK, 1 Year Warranty
Dowload BTS56033LBAAUMA1 Details in PDFSee Product Specifications for product details.
Buy BTS56033LBAAUMA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BTS56033LBAAUMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC PWR SWITCH HISIDE PG-TSON-24 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.978 | $1.777 | $1.456 | $1.239 | $1.045 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | BTS56033LBAAUMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC PWR SWITCH HISIDE PG-TSON-24 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35112 pcs | Data sheet | Automotive Application Guide |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 3.8 V ~ 5.5 V |
| Voltage - Load | 5.5 V ~ 28 V | Switch Type | General Purpose |
| Supplier Device Package | PG-TSON-24-3 | Series | Automotive, AEC-Q100 |
| Rds On (Typ) | 39 mOhm, 110 mOhm | Ratio - Input:Output | 2:3 |
| Packaging | Cut Tape (CT) | Package / Case | 24-PowerVDFN |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | BTS56033LBAAUMA1CT | Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 6 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | SPI |
| Input Type | - | Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current - Output (Max) | - |
