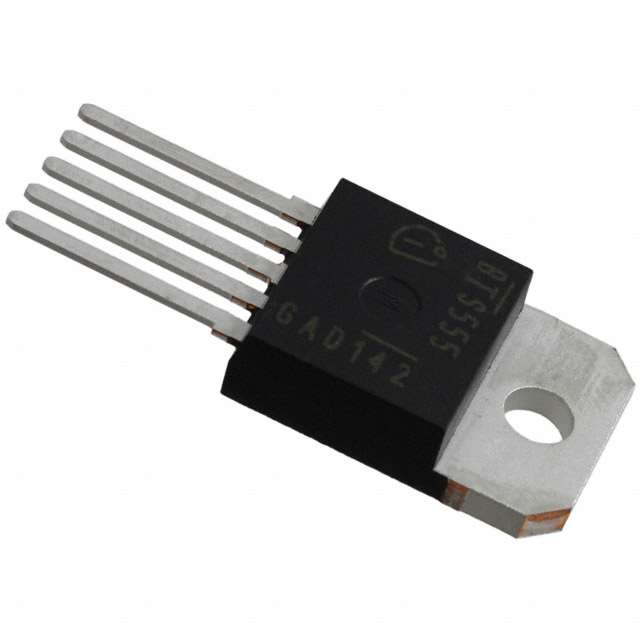

BTS555
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTS555 with confidence from Components-World.HK, 1 Year Warranty
Dowload BTS555 Details in PDFSee Product Specifications for product details.
Buy BTS555 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BTS555 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | IC HISIDE PWR SWTCH TO218AB/5-1 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BTS555 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | IC HISIDE PWR SWTCH TO218AB/5-1 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4778 pcs | Data sheet | BTS555 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 5 V ~ 34 V | Switch Type | General Purpose |
| Supplier Device Package | TO-218AB/5 | Series | PROFET® |
| Rds On (Typ) | 1.9 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Tube | Package / Case | TO-218-5 |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | BTS555NK SP000011266 |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Interface | On/Off |
| Input Type | Non-Inverting | Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current - Output (Max) | 128A |
| Base Part Number | BTS555 |
