MMIX1F44N100Q3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMIX1F44N100Q3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMIX1F44N100Q3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMIX1F44N100Q3 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 1000V 30A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $14.961 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMIX1F44N100Q3 | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 1000V 30A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2502 pcs | Data sheet | SMPD Product BriefMMIX1F44N100Q3 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 6.5V @ 8mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 24-SMPD | Series | HiPerFET™ |
| Rds On (Max) @ Id, Vgs | 245 mOhm @ 22A, 10V | Power Dissipation (Max) | 694W (Tc) |
| Packaging | Tube | Package / Case | 24-PowerSMD, 21 Leads |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 13600pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 264nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 1000V | Detailed Description | N-Channel 1000V 30A (Tc) 694W (Tc) Surface Mount 24-SMPD |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
- Related products
- Related news
Related products
- Part#:
MMIX1F160N30T - Manufacturers:
IXYS Corporation - Description:
MOSFET N-CH 300V 102A SMPD - In Stock:
2688
- Part#:
MMIX1T132N50P3 - Manufacturers:
IXYS Corporation - Description:
SMPD HIPERFETS & MOSFETS - In Stock:
3151
- Part#:
MMIX1X100N60B3H1 - Manufacturers:
IXYS Corporation - Description:
IGBT 600V 145A 400W SMPD - In Stock:
5266
- Part#:

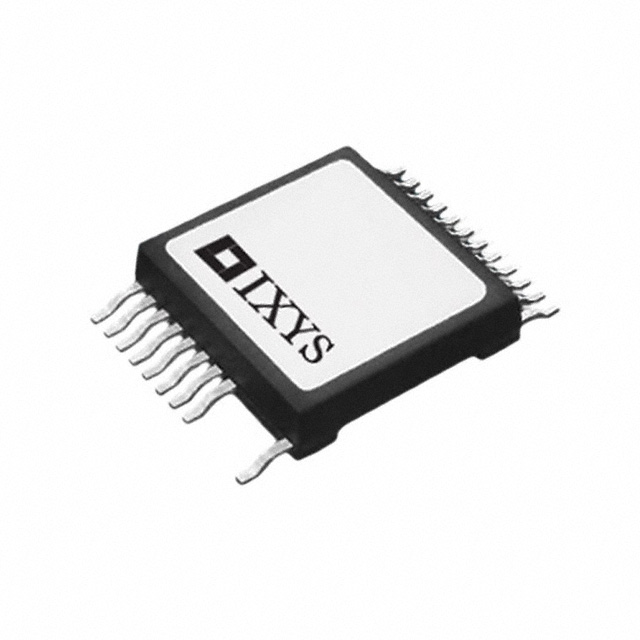

MMIX1F520N075T2 - Manufacturers:
