IXFV12N90P

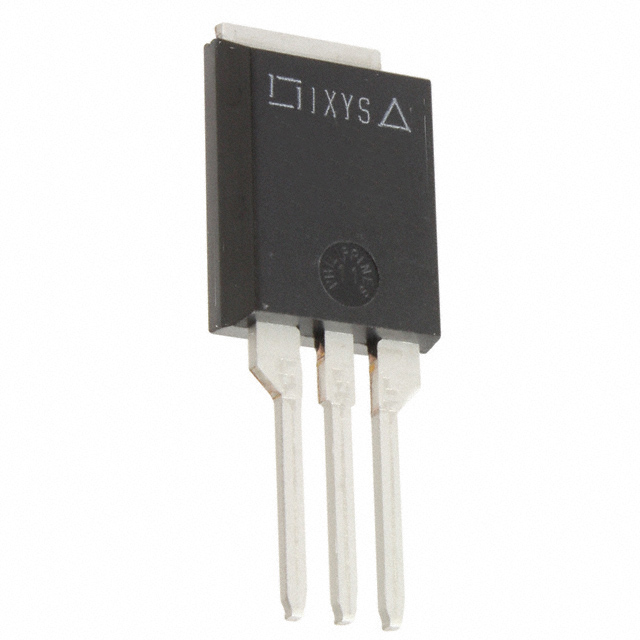

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IXFV12N90P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IXFV12N90P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IXFV12N90P |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | MOSFET N-CH 900V 12A PLUS220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IXFV12N90P | Manufacturer | IXYS Corporation |
|---|---|---|---|
| Description | MOSFET N-CH 900V 12A PLUS220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5118 pcs | Data sheet | IXF(H,V)12N90P/PS |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 6.5V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS220 | Series | HiPerFET™, PolarP2™ |
| Rds On (Max) @ Id, Vgs | 900 mOhm @ 6A, 10V | Power Dissipation (Max) | 380W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3, Short Tab |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3080pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 56nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 900V |
| Detailed Description | N-Channel 900V 12A (Tc) 380W (Tc) Through Hole PLUS220 | Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
