Home > Products > Switches > Snap Action, Limit Switches > ZW50F15FD1-Z

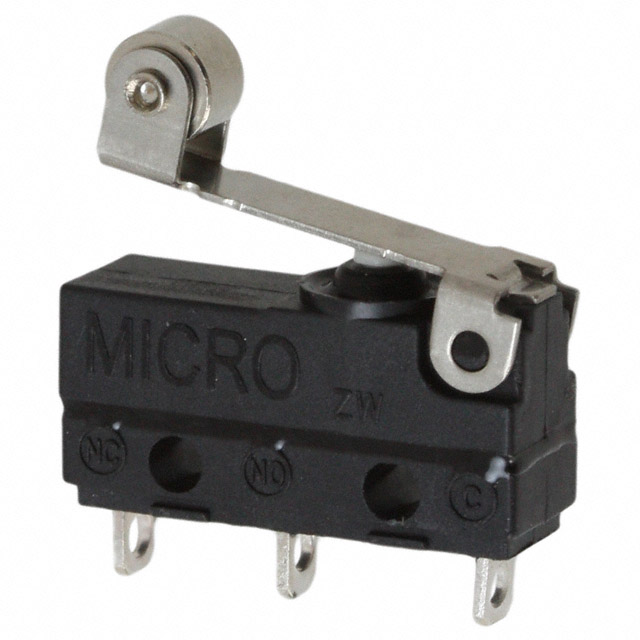

ZW50F15FD1-Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZW50F15FD1-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ZW50F15FD1-Z
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 23465 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
Reference Price (In US Dollars)	$2.217	$1.518	$1.365

Product parameter
Data sheet

Product parameter

Part Number	ZW50F15FD1-Z	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23465 pcs	Data sheet	Basic, Toggle, Rocker Switches Range Guide Basic Switches Line Guide ZW50F15FD1 Drawing ZW Series Datasheet Z Series Install Instr
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	ZW	Release Force	15gf
Pretravel	0.170" (4.3mm)	Packaging	Bulk
Overtravel	0.035" (0.9mm)	Other Names	480-3629 ZW50F15FD1Z
Operating Temperature	-40°C ~ 120°C	Operating Position	0.571" (14.5mm)
Operating Force	72gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP00
Features	-	Electrical Life	10,000 Cycles
Differential Travel	0.025" (0.6mm)	Current Rating	5A (AC)
Circuit	SPDT	Actuator Type	Lever, Roller
