Home > Products > Switches > Snap Action, Limit Switches > BZF1-2RN-LH

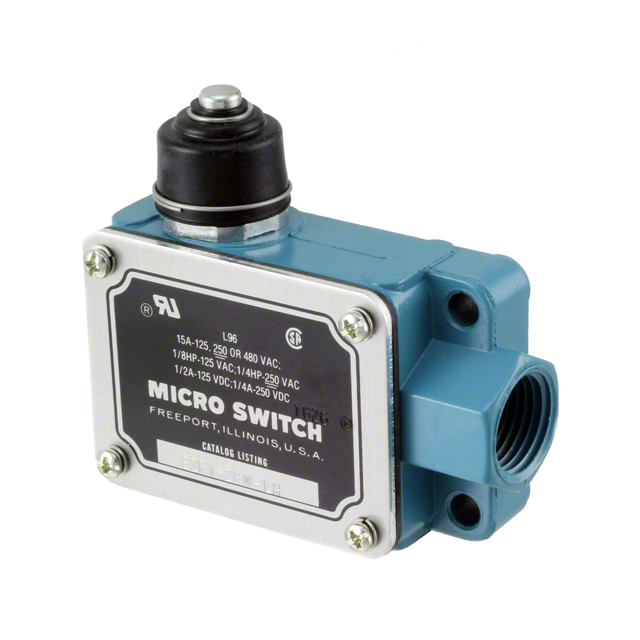

BZF1-2RN-LH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZF1-2RN-LH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZF1-2RN-LH
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 788 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$51.239	$43.387	$41.698	$39.712

Product parameter
Data sheet

Product parameter

Part Number	BZF1-2RN-LH	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	788 pcs	Data sheet	BZF1-2RN-LH Drawing
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZF
Release Force	227gf	Pretravel	0.094" (2.4mm)
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-6852	Operating Temperature	-
Operating Position	2.078" (52.8mm)	Operating Force	907gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Actuator Seal Boot
Electrical Life	-	Differential Travel	0.004" (0.1mm)
Current Rating	15A (AC), 500mA (DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
