Home > Products > Switches > Snap Action, Limit Switches > BZ-RW822-P4

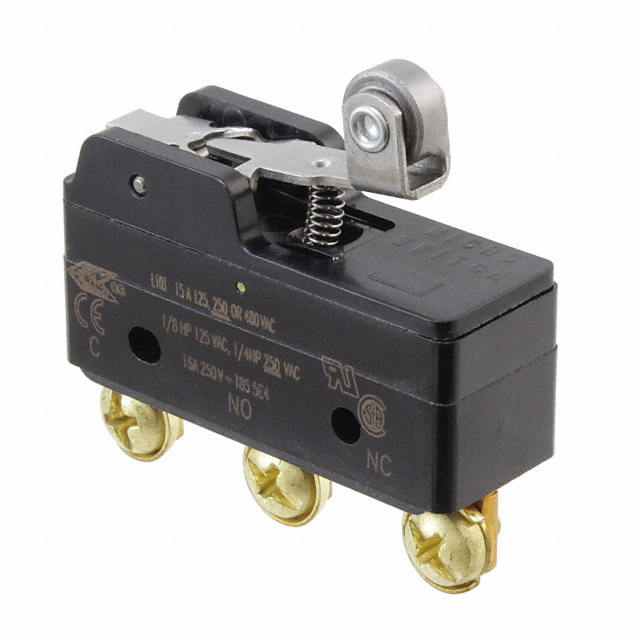

BZ-RW822-P4

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RW822-P4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RW822-P4
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4108 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$11.756	$9.351	$8.762
	$8.384	$8.057	$7.674

Product parameter
Data sheet

Product parameter

Part Number	BZ-RW822-P4	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4108 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	BZ	Release Force	43gf
Pretravel	-	Packaging	Bulk
Overtravel	0.094" (2.4mm)	Other Names	480-4779 BZ-RW822-P4-ND BZRW822P4
Operating Temperature	-55°C ~ 85°C	Operating Position	1.188" (30.2mm)
Operating Force	156gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.006" (0.15mm)
Current Rating	15A (AC)	Circuit	SPDT
Actuator Type	Lever, Roller
