Home > Products > Switches > Snap Action, Limit Switches > BZ-RW80X

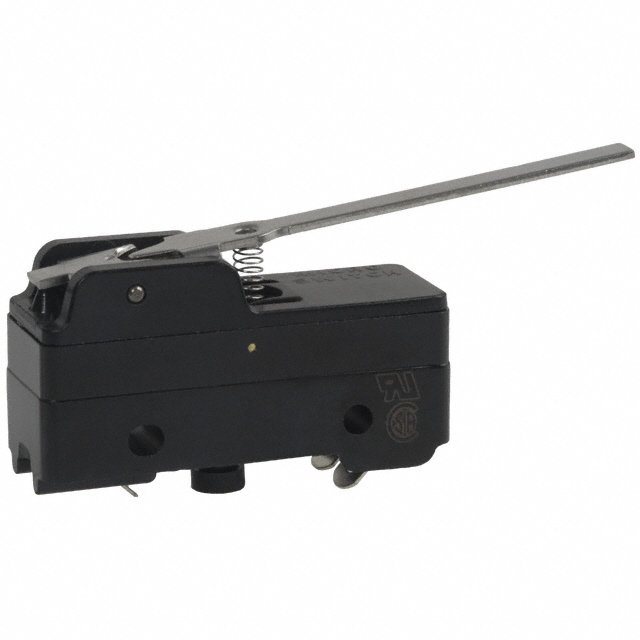

BZ-RW80X

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-RW80X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-RW80X
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4515 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$11.935	$9.492	$8.894
	$8.51	$8.179	$7.789

Product parameter
Data sheet

Product parameter

Part Number	BZ-RW80X	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4515 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	BZ
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	0.219" (5.6mm)
Other Names	480-2455 BZRW80X	Operating Temperature	-55°C ~ 85°C
Operating Position	0.750" (19.1mm)	Operating Force	64gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	-	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Straight
