Home > Products > Switches > Snap Action, Limit Switches > BZ-2RLT04

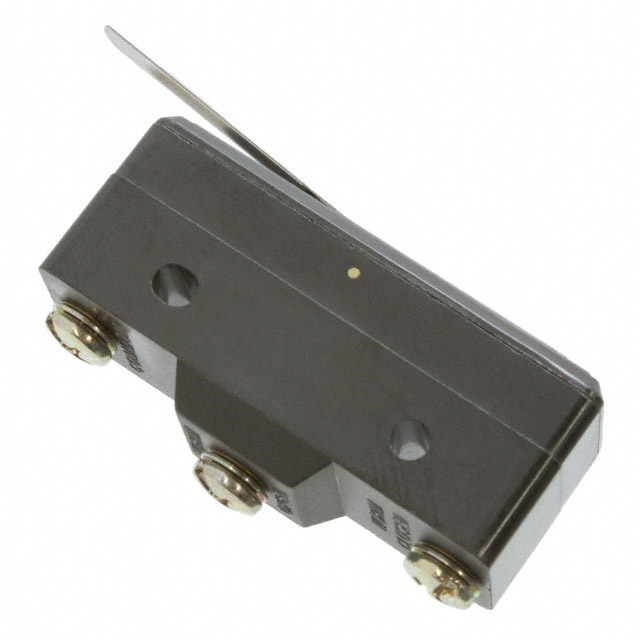

BZ-2RLT04

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RLT04 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RLT04
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 115V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6975 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$5.48

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RLT04	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6975 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - AC	115V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	BZ	Release Force	14gf
Pretravel	0.157" (4.0mm)	Packaging	Bulk
Overtravel	0.060" (1.5mm)	Other Names	480-4592 BZ-2RLT04-ND BZ2RLT04
Operating Temperature	-55°C ~ 85°C	Operating Position	1.125" (28.6mm)
Operating Force	106 ~ 141gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.050" (1.3mm)
Current Rating	15A (AC)	Circuit	SPDT
Actuator Type	Lever, Leaf
