Home > Products > Switches > Snap Action, Limit Switches > BZ-2RL2T04

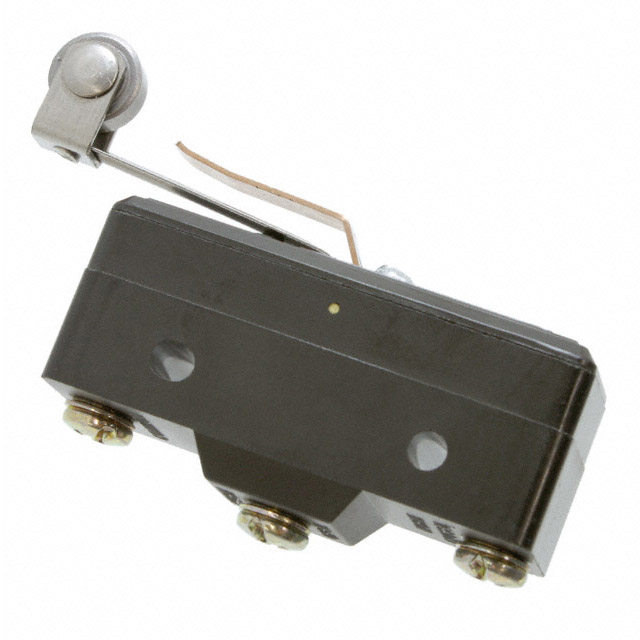

BZ-2RL2T04

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BZ-2RL2T04 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BZ-2RL2T04
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5617 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$10.929	$8.692	$8.144	$7.793
	$7.489	$7.133	$6.882

Product parameter
Data sheet

Product parameter

Part Number	BZ-2RL2T04	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5617 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BZ
Release Force	14gf	Pretravel	0.157" (4.0mm)
Packaging	Bulk	Overtravel	0.060" (1.5mm)
Other Names	480-4589 BZ-2RL2T04-ND BZ2RL2T04	Operating Temperature	-55°C ~ 85°C
Operating Position	1.125" (28.6mm)	Operating Force	106 ~ 141gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.050" (1.3mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
