Home > Products > Switches > Snap Action, Limit Switches > BA-3ST

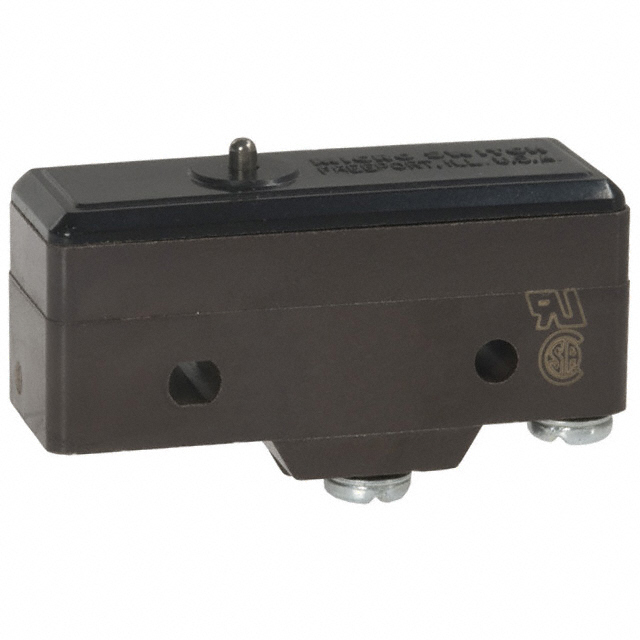

BA-3ST

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BA-3ST with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BA-3ST
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 25A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3252 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$10.256

Product parameter
Data sheet

Product parameter

Part Number	BA-3ST	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACT SPDT-DB 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3252 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	BA
Release Force	283gf	Pretravel	0.065" (1.65mm)
Packaging	Bulk	Overtravel	0.010" (0.25mm)
Other Names	480-2426 BA3ST	Operating Temperature	-55°C ~ 85°C
Operating Position	0.640" (16.3mm)	Operating Force	737 ~ 1077gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.008" (0.2mm)	Current Rating	25A (AC), 1A (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Round (Pin Plunger)
