Home > Products > Switches > Snap Action, Limit Switches > BA-3RX717

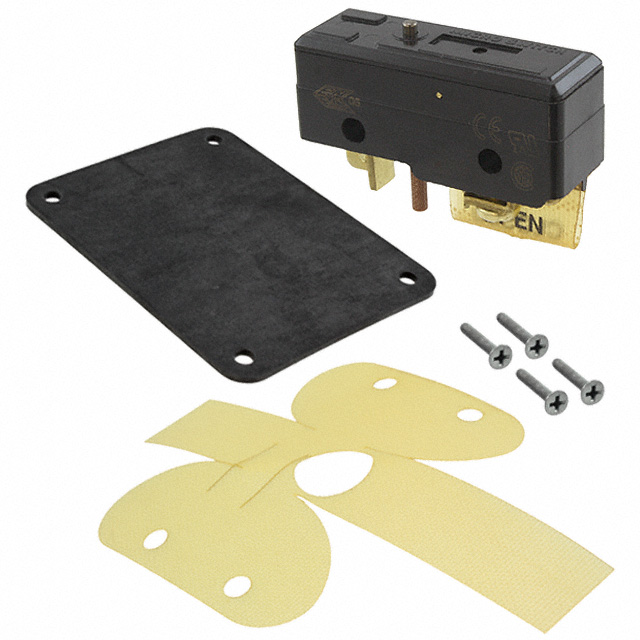

BA-3RX717

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BA-3RX717 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BA-3RX717
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1622 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$27.227	$22.553	$21.58	$20.74	$19.752

Product parameter
Data sheet

Product parameter

Part Number	BA-3RX717	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1622 pcs	Data sheet	BZ, BA, BM, BE Series Part Number Guide BZ,BA,BM,6AS,W,Y Series
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-On	Series	BA
Release Force	-	Pretravel	0.025" (0.65mm)
Packaging	Bulk	Overtravel	0.100" (2.54mm)
Other Names	480-4517 BA-3RX717-ND BA3RX717	Operating Temperature	-55°C ~ 85°C
Operating Position	0.665" (16.9mm)	Operating Force	141 ~ 283gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	20,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	-	Current Rating	20A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
