Home > Products > Switches > Snap Action, Limit Switches > 3MN1

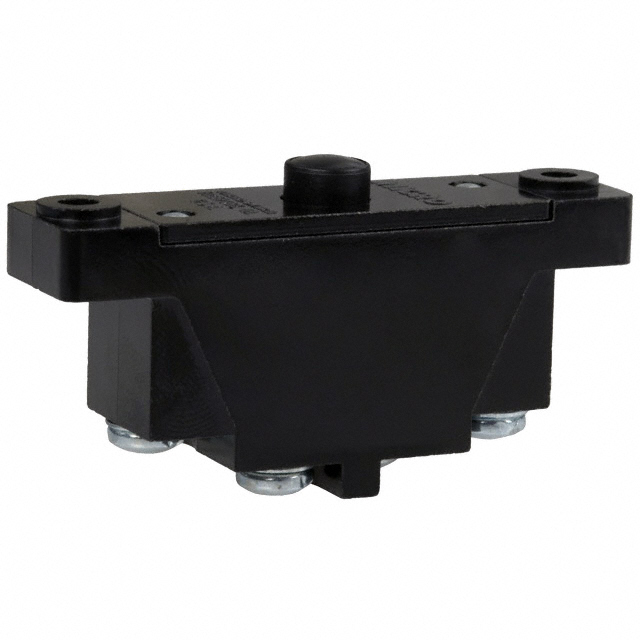

3MN1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3MN1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	3MN1
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 2358 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$19.072	$15.797	$15.115
	$14.527	$13.835	$13.35

Product parameter
Data sheet

Product parameter

Part Number	3MN1	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2358 pcs	Data sheet	BS, DT, MN, MT, TB Series
Category	Switches	Voltage Rating - DC	115V
Voltage Rating - AC	120V	Termination Style	Screw Terminal
Switch Function	On-Mom	Series	MN
Release Force	170gf	Pretravel	0.060" (1.5mm)
Packaging	Bulk	Overtravel	0.080" (2.03mm)
Other Names	480-2465	Operating Temperature	-55°C ~ 85°C
Operating Position	0.085" (2.16mm)	Operating Force	340 ~ 567gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.025" (0.6mm)	Current Rating	15A (AC), 800mA (DC)
Circuit	SPDT (DB/DM)	Actuator Type	Round (Pin Plunger)
