Home > Products > Switches > Pushbutton Switches > 3MN-DP7-AP2/22-M1RE

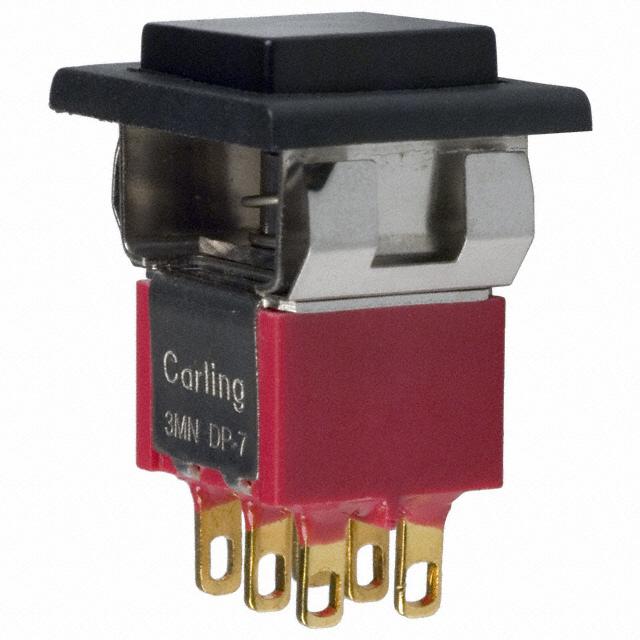

3MN-DP7-AP2/22-M1RE

3MN-DP7-AP2/22-M1RE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3MN-DP7-AP2/22-M1RE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	3MN-DP7-AP2/22-M1RE
Manufacturer	Carling Technologies
Description	SWITCH PUSH DPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12724 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$3.434	$3.182	$3.099	$3.015	$2.848

Product parameter
Data sheet

Product parameter

Part Number	3MN-DP7-AP2/22-M1RE	Manufacturer	Carling Technologies
Description	SWITCH PUSH DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12724 pcs	Data sheet	3M Series
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	3MN	Panel Cutout Dimensions	Rectangular - 15.24mm x 12.70mm
Packaging	Bulk	Other Names	432-1189
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Square, Button
