LF10WBR-12P

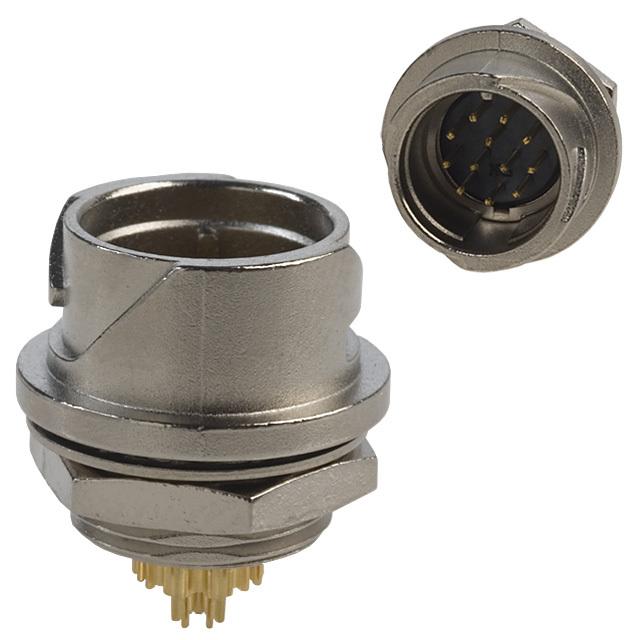

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LF10WBR-12P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LF10WBR-12P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LF10WBR-12P |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT MALE 12POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.957 | $3.784 | $3.44 | $3.268 | $3.182 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | LF10WBR-12P | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT MALE 12POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9429 pcs | Data sheet | LF Series |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC, 42VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 10 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | LF | Packaging | Tray |
| Other Names | *LF10WBR-12P HR558 LF10WBR12P |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 12 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 12 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Telecommunications |
