LF10WBPD-4S

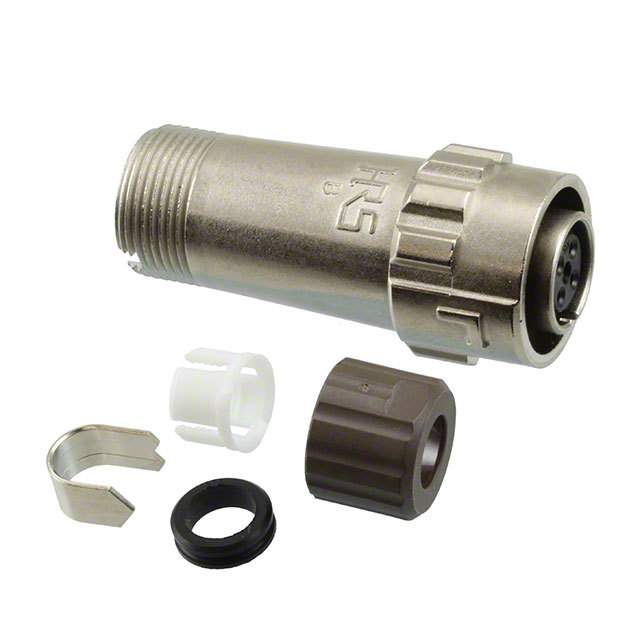

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LF10WBPD-4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LF10WBPD-4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LF10WBPD-4S |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.516 | $6.05 | $5.429 | $5.274 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LF10WBPD-4S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6492 pcs | Data sheet | LF Series |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC/DC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 10 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | LF | Packaging | Tray |
| Other Names | 136-0014-3-00 H124156 LF10WBPD-4S-ND |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Fastening Type | Bayonet Lock | Detailed Description | 4 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | 10A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Brown, Silver |
| Cable Opening | - | Backshell Material, Plating | Zinc Alloy, Nickel |
| Applications | Industrial, Telecommunications |
