HIF3H-10DA-2.54DSA(71)

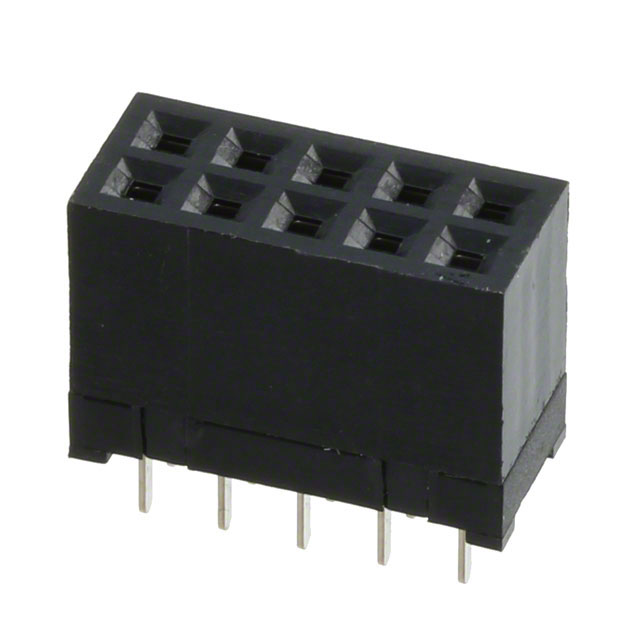

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF3H-10DA-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF3H-10DA-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF3H-10DA-2.54DSA(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HOUSING 10POS 2.54MM DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.004 | $0.962 | $0.882 | |||
| 50 pcs | 100 pcs | 275 pcs | |||
| $0.842 | $0.802 | $0.702 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF3H-10DA-2.54DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HOUSING 10POS 2.54MM DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45717 pcs | Data sheet | HIF3H Series |
| Category | Connectors, Interconnects | Voltage Rating | 300VAC |
| Termination | Solder | Style | Board to Board |
| Series | HIF3H | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | H123860 HIF3H-10DA-2.54DSA(71)-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.374" (9.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | - | Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
