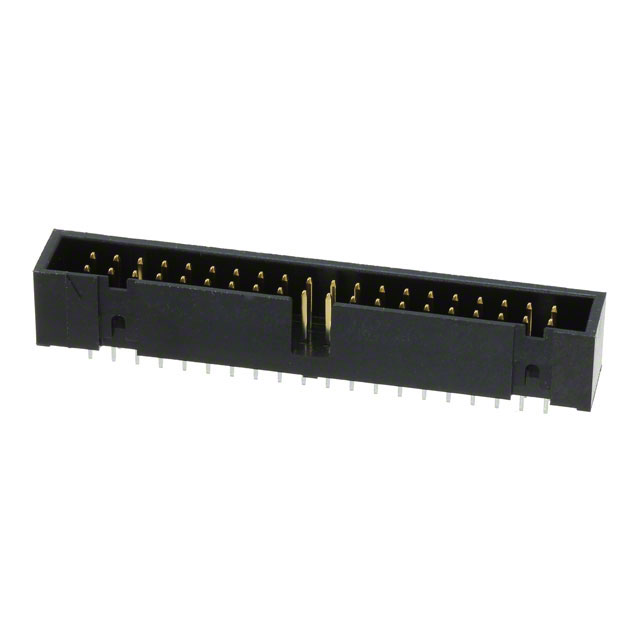

HIF3FC-40PA-2.54DSA(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF3FC-40PA-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF3FC-40PA-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF3FC-40PA-2.54DSA(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 40POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 200 pcs | ||
|---|---|---|---|---|---|
| $1.336 | $1.281 | $1.067 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF3FC-40PA-2.54DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 40POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36387 pcs | Data sheet | HIF3FB, HIF3FC Series |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | HIF3FC |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H123856 HIF3FC-40PA-2.54DSA(71)-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
