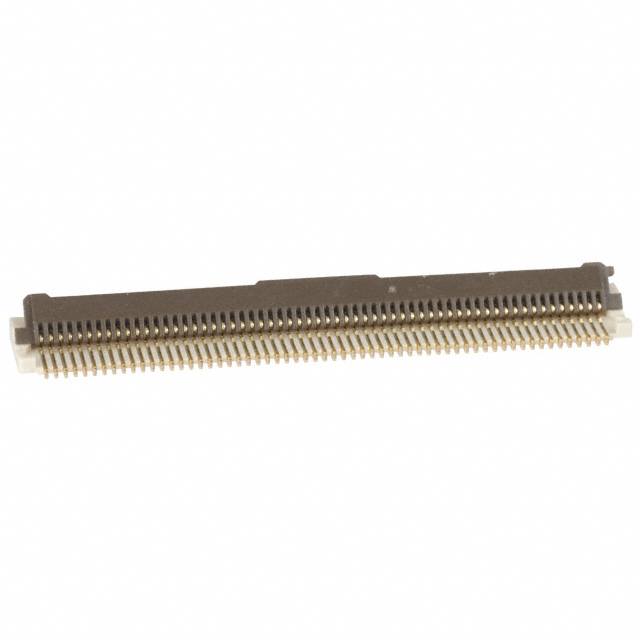

FH29-120S-0.2SHW(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH29-120S-0.2SHW(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH29-120S-0.2SHW(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH29-120S-0.2SHW(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 120POS 0.20MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH29-120S-0.2SHW(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 120POS 0.20MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5766 pcs | Data sheet | FH29-xxS-0.2SHW(05) DrawingFH29 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 40V |
| Termination | Solder | Series | FH29 |
| Pitch | 0.008" (0.20mm) | Packaging | Tape & Reel (TR) |
| Other Names | HFD120TR | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 120 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Beige | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 120 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle |
| Current Rating | 0.25A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Polyamide (PA), Nylon | Actuator Color | Brown |
