FH19C-21S-0.5SH(05)

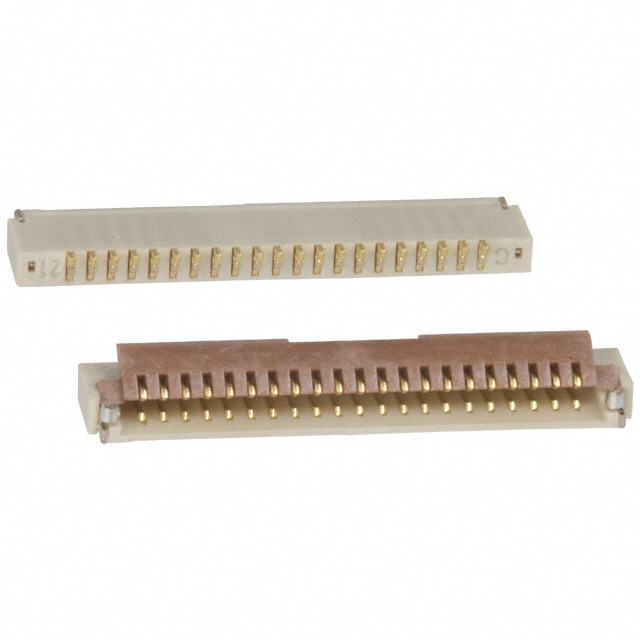

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH19C-21S-0.5SH(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH19C-21S-0.5SH(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH19C-21S-0.5SH(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 21POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH19C-21S-0.5SH(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 21POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4870 pcs | Data sheet | FH19C,FH19SC Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH19C |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | *FH19C-21S-0.5SH(05) HFN421CT |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 21 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.035" (0.88mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 21 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) | Actuator Color | Brown |
