FH19C-17S-0.5SH(99)

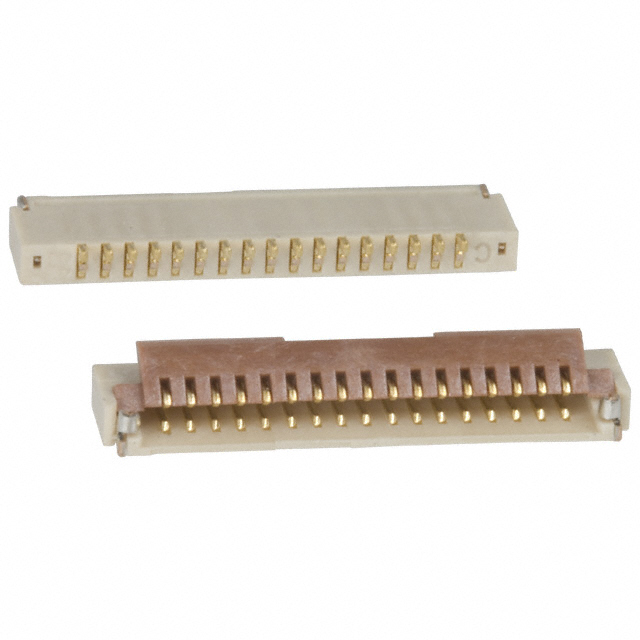

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH19C-17S-0.5SH(99) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH19C-17S-0.5SH(99) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH19C-17S-0.5SH(99) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 17POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.093 | $1.048 | $0.961 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.917 | $0.873 | $0.764 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH19C-17S-0.5SH(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 17POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45479 pcs | Data sheet | FH19C-xxS-0.5SH(99) DrawingFH19C,FH19SC SeriesFH19C/SC Series DatasheetFH19C-xxS-0.5SH(99) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH19C |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | H122513CT | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 17 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 17 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Actuator Color | Brown |
