DF22R-3P-7.92DSA

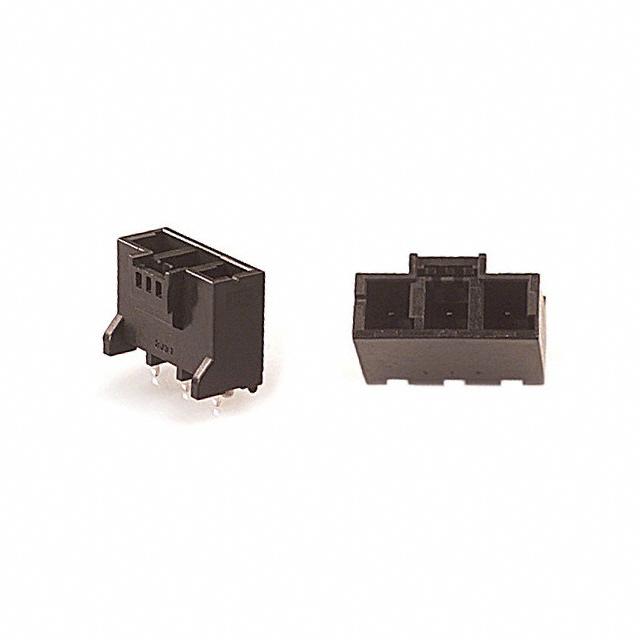

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF22R-3P-7.92DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF22R-3P-7.92DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF22R-3P-7.92DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 3POS 7.92MM PCB TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF22R-3P-7.92DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 7.92MM PCB TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4879 pcs | Data sheet | DF22 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.312" (7.92mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | *DF22R-3P-7.92DSA H1617 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 25.7mm, 28.7mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.713" (18.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.312" (7.92mm) | Current Rating | 25A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.146" (3.70mm) |
| Contact Length - Mating | 0.354" (9.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
