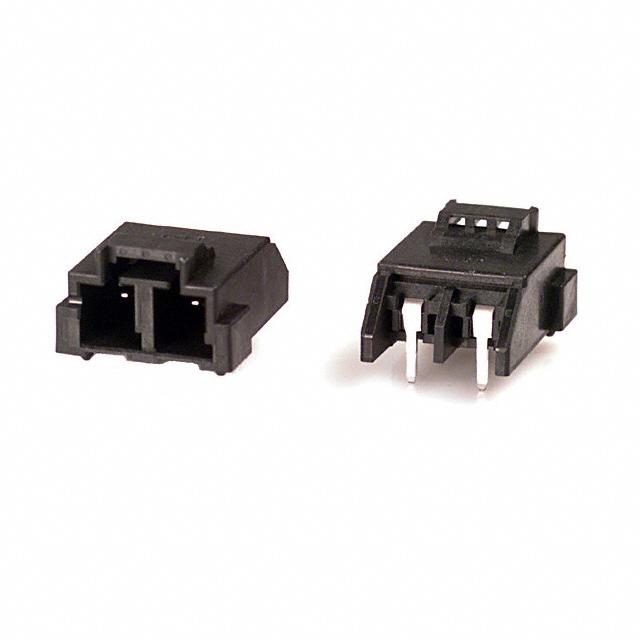

DF22R-2P-7.92DS(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF22R-2P-7.92DS(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF22R-2P-7.92DS(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF22R-2P-7.92DS(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 2POS 7.92MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.298 | $0.262 | $0.226 | $0.185 | $0.165 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF22R-2P-7.92DS(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 2POS 7.92MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 146845 pcs | Data sheet | DF22 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.312" (7.92mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | *DF22R-2P-7.92DS(05) DF22R2P792DS05 H10706 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.480" (12.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.312" (7.92mm) |
| Current Rating | 25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.354" (9.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Copper |
| Connector Type | Header | Applications | - |
