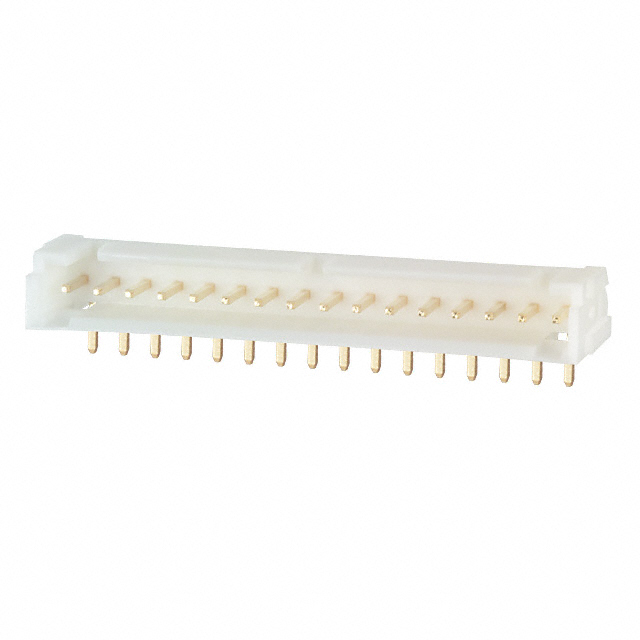

DF1B-16P-2.5DS(01)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1B-16P-2.5DS(01) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF1B-16P-2.5DS(01) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF1B-16P-2.5DS(01) |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN HEADER 16POS 2.5MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.525 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF1B-16P-2.5DS(01) | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN HEADER 16POS 2.5MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60341 pcs | Data sheet | DF1B-xP-2.5DS(01) DrawingDF1B-xP-2.5DS(01) SpecDF1B Series Datasheet |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.098" (2.50mm) | Shield Termination | Square |
| Series | DF1B | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | 250V | Overall Contact Length | 0.142" (3.60mm) |
| Other Names | *DF1B-16P-2.5DS(01) H3646 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions | 16 |
| Number of Contacts | - | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | DF1B-16P-2.5DS(01) | Length - Post (Mating) | 5.7mm, 8.65mm |
| Insulation Material | - | Insulation Height | - |
| Features | Keying Slot | Expanded Description | 16 Positions Header Connector 0.098" (2.50mm) Through Hole, Right Angle Gold |
| Description | CONN HEADER 16POS 2.5MM R/A GOLD | Current Rating | - |
| Current - Max/Contact | - | Contact Length - Post | 0.177" (4.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Polyamide (PA), Nylon |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 8µin (0.20µm) |
| Contact Finish - Mating | 0.224" (5.69mm) | Connector Type | Header |
| Actual Diameter | White |
