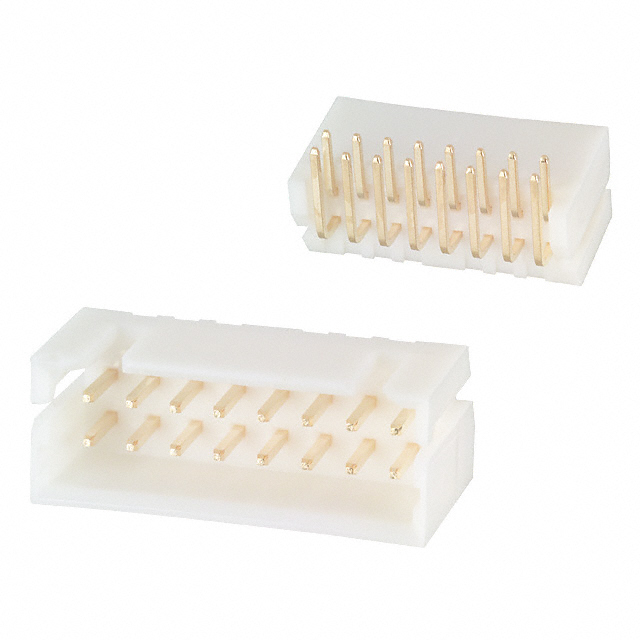

DF1B-16DP-2.5DS(01)

DF1B-16DP-2.5DS(01)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF1B-16DP-2.5DS(01) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number DF1B-16DP-2.5DS(01)
Manufacturer Hirose
Description CONN HEADER 16POS 2.5MM R/A GOLD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 66139 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs1000 pcs
$0.583$0.528$0.453$0.377$0.323

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.583

Product parameter

Part Number DF1B-16DP-2.5DS(01) Manufacturer Hirose
Description CONN HEADER 16POS 2.5MM R/A GOLD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 66139 pcs Data sheet DF1B Series DatasheetDF1B-xDP-2.5DS(01) DrawingDF1B-xDP-2.5DS(01) Spec
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series DF1B
Row Spacing - Mating 0.098" (2.50mm) Pitch - Mating 0.098" (2.50mm)
Packaging Bulk Overall Contact Length -
Other Names *DF1B-16DP-2.5DS(01)
DF1B16DP25DS01
H3655		 Operating Temperature -35°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 16 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.339" (8.61mm) Insulation Color White
Ingress Protection - Features Keying Slot
Fastening Type Push-Pull Detailed Description Connector Header Through Hole, Right Angle 16 position 0.098" (2.50mm)
Current Rating - Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.130" (3.30mm) Contact Length - Mating 0.177" (4.50mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post - Contact Finish - Mating Gold
Connector Type Header Applications -
