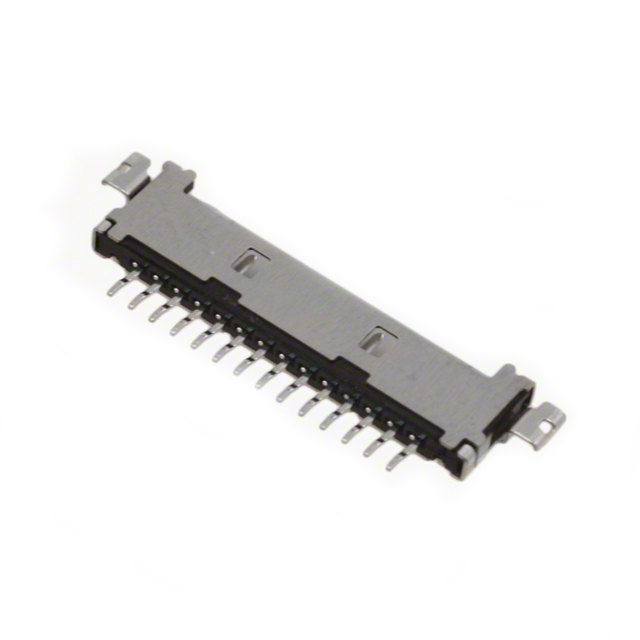

DF19L-14P-1H(54)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF19L-14P-1H(54) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF19L-14P-1H(54) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF19L-14P-1H(54) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 14POS 1MM R/A SMD AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.282 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF19L-14P-1H(54) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 14POS 1MM R/A SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82542 pcs | Data sheet | DF19L-xP-1H(54) DrawingDF19 Series DatasheetDF19L-xP-1H(54) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | DF19 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | DF19L14P1H54 H11688TR |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Board Edge, Cutout; Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.057" (1.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Board Edge, Cutout; Surface Mount, Right Angle 14 position 0.039" (1.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
