DF19KR-14P-1H(56)

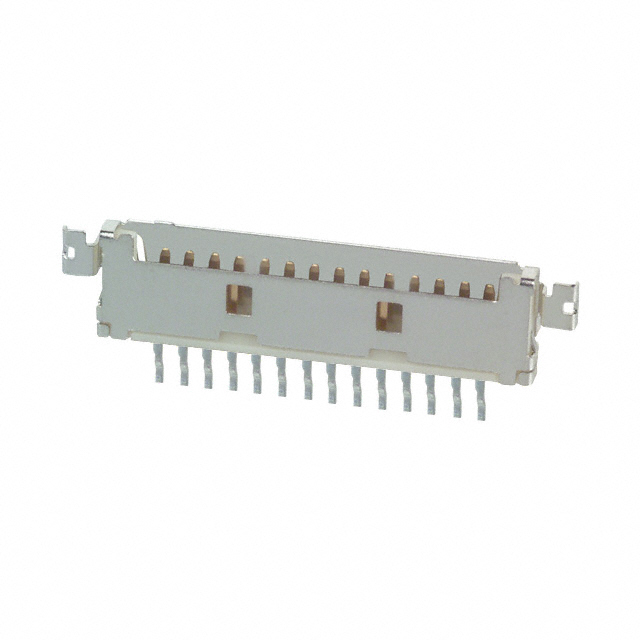

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF19KR-14P-1H(56) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF19KR-14P-1H(56) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF19KR-14P-1H(56) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 14POS REV R/A SMD AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF19KR-14P-1H(56) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 14POS REV R/A SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5618 pcs | Data sheet | DF19 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | DF19 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | *DF19KR-14P-1H(56) DF19KR14P1H56 H10754CT |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Board Edge, Cutout; Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.057" (1.45mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Board Edge, Cutout; Surface Mount, Right Angle 14 position 0.039" (1.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Reverse Pin |
| Applications | - |
