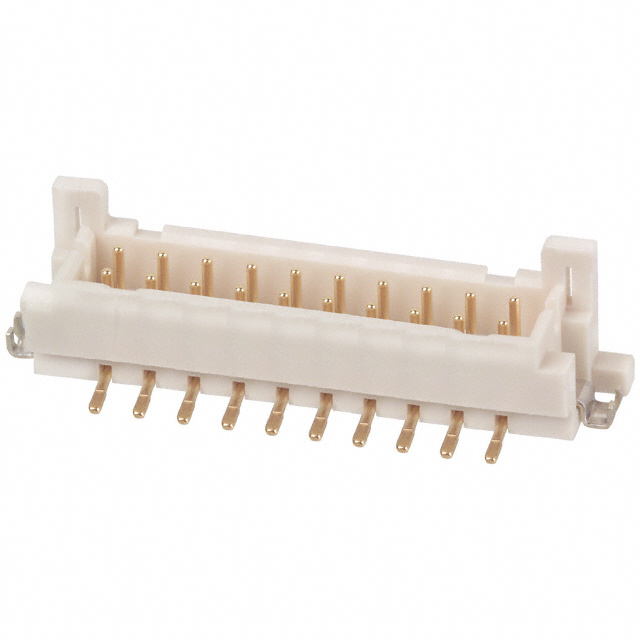

DF11G-20DP-2V(50)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11G-20DP-2V(50) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11G-20DP-2V(50) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11G-20DP-2V(50) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 20POS 2MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 102 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.955 | $0.867 | $0.743 | $0.619 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11G-20DP-2V(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 20POS 2MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55580 pcs | Data sheet | DF11G-xDP-2V(50) SpecDF11 Series DatasheetDF11G-xDP-2V(50) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF11G-20DP-2V(50) DF11G20DP2V50 H2905 |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.283" (7.19mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 20 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
