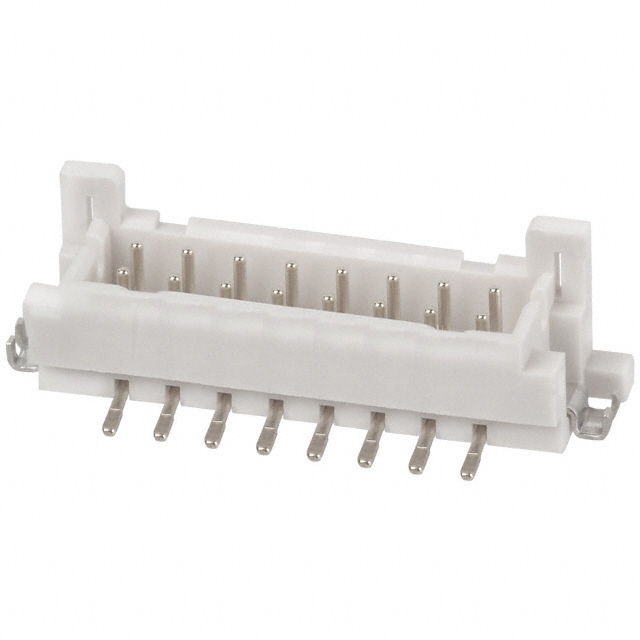

DF11G-16DP-2V(20)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF11G-16DP-2V(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF11G-16DP-2V(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF11G-16DP-2V(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 16POS 2MM SMD TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF11G-16DP-2V(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 16POS 2MM SMD TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5960 pcs | Data sheet | DF11 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF11G-16DP-2V(20) H2887 |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.283" (7.19mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 16 position 0.079" (2.00mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
