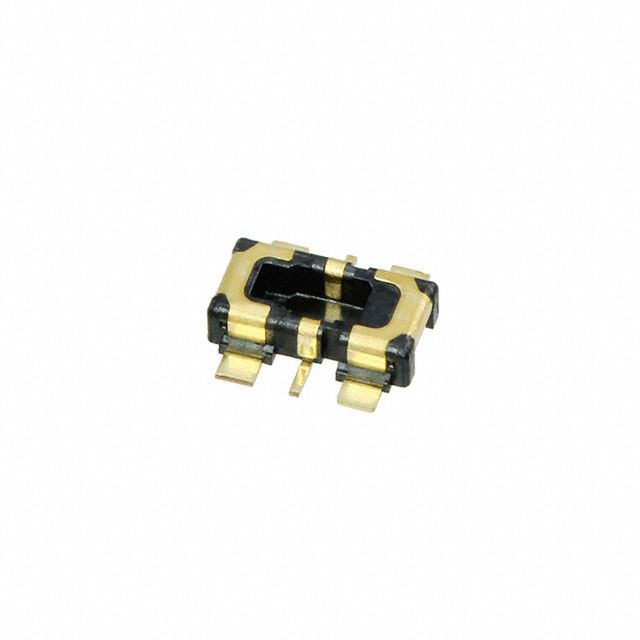

BM22L-4P-V(53)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM22L-4P-V(53) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM22L-4P-V(53) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM22L-4P-V(53) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 4POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.388 | $0.343 | $0.322 | $0.309 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.296 | $0.269 | $0.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM22L-4P-V(53) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 4POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98210 pcs | Data sheet | BM22 Series DatasheetBM22L-4P-V(53) DrawingBM22L-4P-V(53) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | BM22 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | H122449CT | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 4 (2 + 2 Power) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 0.9mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.030" (0.75mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount 4 (2 + 2 Power) position |
| Current Rating | - | Contact Type | Outer Shroud Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 2.00µin (0.051µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
