BM22-6S-V(53)

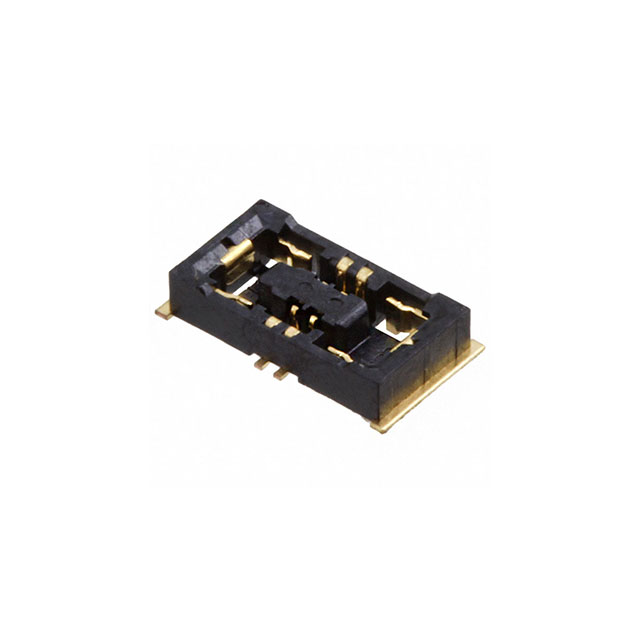

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM22-6S-V(53) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM22-6S-V(53) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM22-6S-V(53) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT 6POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.225 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM22-6S-V(53) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 6POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98953 pcs | Data sheet | BM22 Series DatasheetBM22-6S-V(53) DrawingBM22-6S-V(53) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to FPC |
| Series | BM22 | Row Spacing - Mating | - |
| Pitch - Mating | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | H122452TR | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 (4 + 2 Power) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 0.9mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.035" (0.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Friction Lock | Detailed Description | 6 (4 + 2 Power) Position Receptacle Connector Surface Mount Gold |
| Current Rating | 0.3A Signal, 4A Power | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
