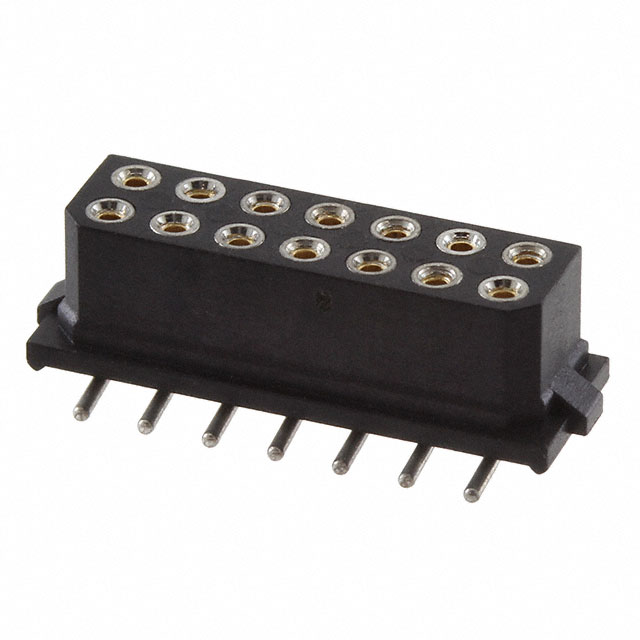

M80-6811401
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-6811401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-6811401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-6811401 |
|---|---|
| Manufacturer | Harwin |
| Description | 2 X 7 POS DIL FEMALE VERT CONN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $4.028 | $3.853 | $3.24 | $2.714 | $2.399 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-6811401 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2 X 7 POS DIL FEMALE VERT CONN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 12593 pcs | Data sheet | M80-681yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Datamate L-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-3430 M80-6811401-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.85mm, 8.45mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 14 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
