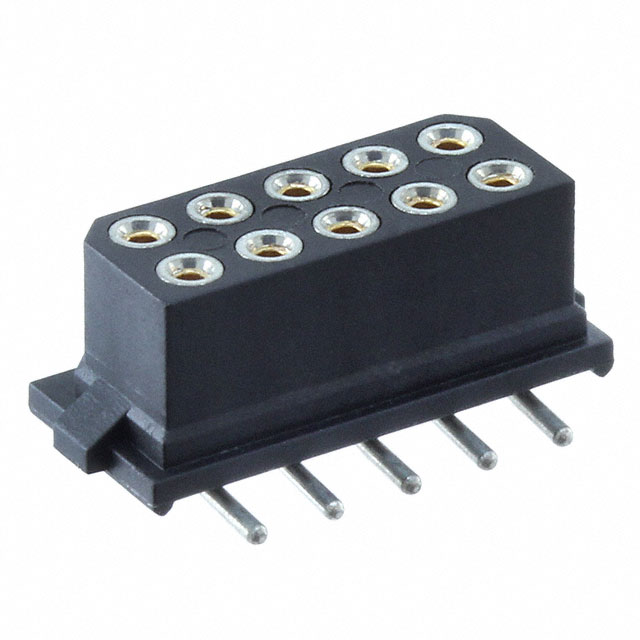

M80-6811042
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-6811042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-6811042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-6811042 |
|---|---|
| Manufacturer | Harwin |
| Description | 5+5 DIL FEMALE VERT CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.935 | $2.807 | $2.361 | $1.978 | $1.748 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-6811042 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 5+5 DIL FEMALE VERT CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17272 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-681yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Datamate L-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 952-3429 M80-6811042-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.85mm, 8.45mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
