M80-4862005

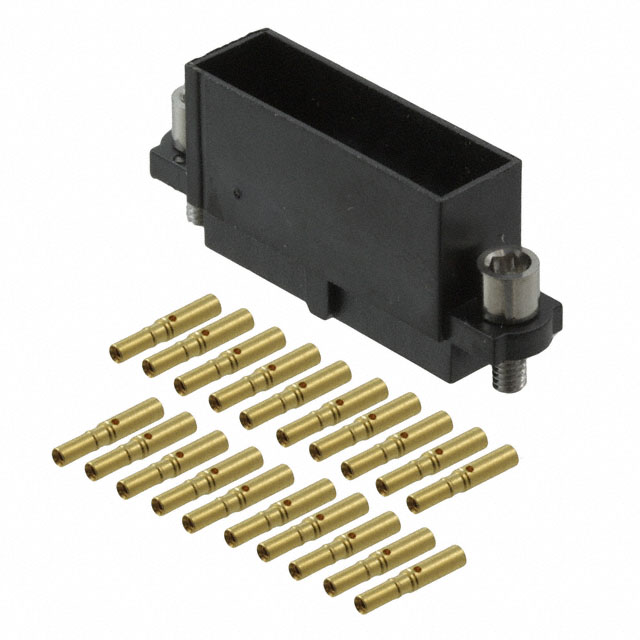

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-4862005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4862005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-4862005 |
|---|---|
| Manufacturer | Harwin |
| Description | DIL FEMALE SMALL BORE CRIMP CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.524 | $5.021 | $4.895 | $4.519 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.268 | $3.891 | $3.64 | $3.339 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-4862005 | Manufacturer | Harwin |
|---|---|---|---|
| Description | DIL FEMALE SMALL BORE CRIMP CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10768 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-486yyyy Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 24-28 AWG | Series | Datamate J-Tek |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 952-2074 M804862005 |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jackscrews, Polarizing Key, Potting Wall | Fastening Type | - |
| Detailed Description | 20 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 11.8µin (0.30µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | Crimp |
