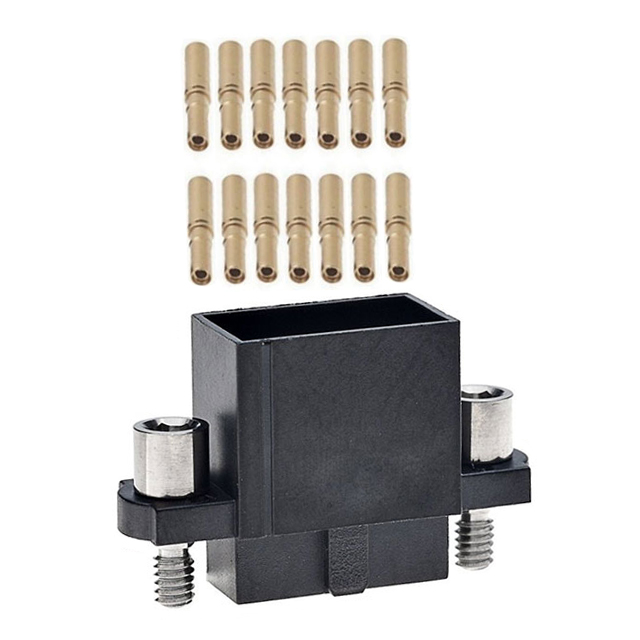

M80-4861442
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M80-4861442 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4861442 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M80-4861442 |
|---|---|
| Manufacturer | Harwin |
| Description | 07+07 WAY F CRIMP S/BORE HX/JS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.226 | $3.085 | $2.804 | $2.664 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.594 | $2.314 | $2.173 | $1.921 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M80-4861442 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 07+07 WAY F CRIMP S/BORE HX/JS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19178 pcs | Data sheet | M80, M83 Series Spec SheetDatamate CatalogM80-486yyyy Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 24-28 AWG | Series | Datamate J-Tek |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 952-3538 |
| Number of Rows | 2 | Number of Positions | 14 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jackscrews, Polarizing Key, Potting Wall | Fastening Type | - |
| Detailed Description | 14 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 11.8µin (0.30µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Black |
| Cable Termination | Crimp |
