M7685-46

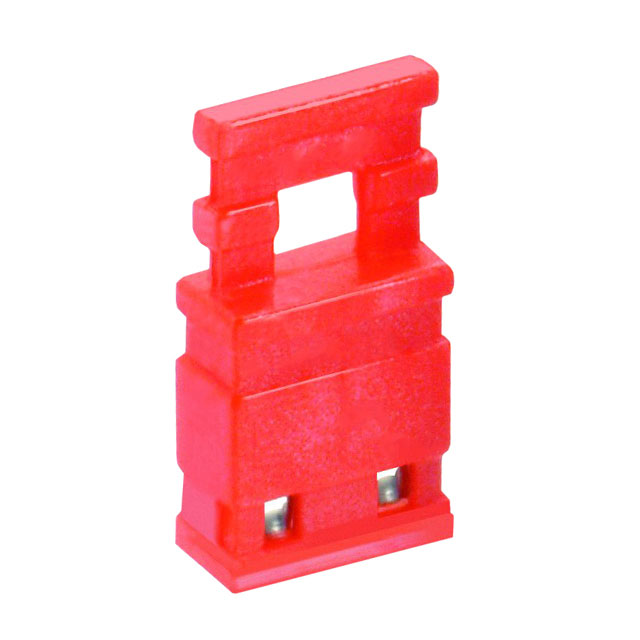

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M7685-46 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M7685-46 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M7685-46 |
|---|---|
| Manufacturer | Harwin |
| Description | 10MM JUMPER SKT W/HNDL RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.126 | $0.119 | $0.102 | $0.086 | $0.083 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.075 | $0.071 | $0.059 | $0.054 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M7685-46 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 10MM JUMPER SKT W/HNDL RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 358343 pcs | Data sheet | M7684-87 DrawingM20 Series Catalog |
| Category | Connectors, Interconnects | Type | Closed Top, Grip |
| Series | M76 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 952-3369 M7685-46-ND |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.394" (10.00mm) | Gender | Female Sockets |
| Detailed Description | 2 (1 x 2) Position Shunt Connector Red Closed Top, Grip 0.100" (2.54mm) Tin | Contact Finish Thickness | 118.1µin (3.00µm) |
| Contact Finish | Tin | Color | Red |
